Agent Framework

Last updated: 2026-06-01

Agentic framework and structure

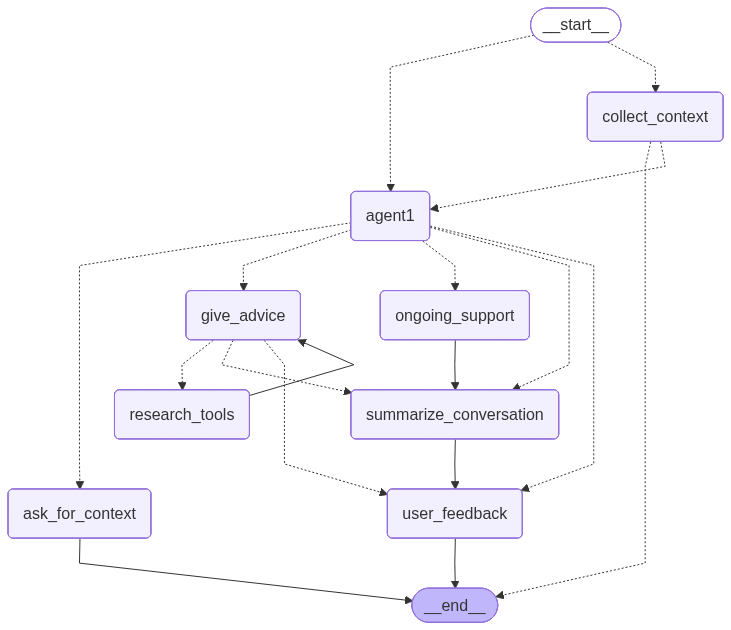

The structure of the service1 agent. This diagram is automatically generated by the graph definition in api/agents/service1/graph.py.
Figure 1

Implementation details

The main agent logic is implemented using langgraph and is located in the api/agents/service1/ directory. The structure is modular, breaking down the agent’s functionality into distinct components:

  • graph.py: Defines the langgraph StateGraph, connecting all the nodes and edges that constitute the agent’s logic. It also includes code to automatically generate a Mermaid diagram of the graph’s structure.
  • core/: Contains the core components of the agent.
    • state.py: Defines the Service1State TypedDict, which tracks the agent’s state throughout the conversation, including messages, context, and actions.
    • llm_client.py: Manages the lazy-loaded LLM client (ChatGoogleGenerativeAI) and other services like RAG and Analytics.
    • registry.py: Holds the tool registry, mapping tool names (used in YAML manifests) to their callable implementations.
  • nodes/: Each file in this directory corresponds to a specific node in the graph, encapsulating a particular piece of logic (e.g., giving advice, collecting context).
    • nodes/manifests/: YAML manifest files, one per node, declaring the prompt structure, tools, and output schema for that node (see NodeEnv below).
  • memory/: Contains the MemoryLake component for asynchronous, persistent agent memory (see Persistent Memory Lake below).
  • routers/: Contains the conditional routing logic that directs the flow of the conversation between different nodes based on the current state.
  • tools/: LangGraph tool definitions (research_tools.py, contact_tools.py) that nodes can invoke via the research_tools tool node.
  • utils/: Provides helper functions, the NodeEnv compiler (node_env.py), context extraction helpers (context.py), and output formatters (formatters.py).

The agent is designed as a state machine where each node transition is determined by the output of the previous node and the conditional logic in the routers.

Node descriptions

  • agent1

    A central router node that uses the LLM to determine the next high-level action (e.g., give_advice, collect_context) based on the current conversation history. Its prompt and output schema are declared in nodes/manifests/agent1.yaml.

  • collect_context

    This node manages the initial phase of the conversation, guiding the user through a series of questions defined in the i18n configuration (see Dynamic Context Collection). It continues to ask questions until all required context (context_complete flag) has been collected.

  • ask_for_context

    A supplementary node to collect_context. The conversation is routed here if agent1 determines that the user’s situation requires further clarification outside the standard initial questions.

  • give_advice

    The core node responsible for generating a helpful, empathetic response to the user’s situation. It can trigger the research_tools tool node to enrich its answer with information from ingested RAG documents.

  • research_tools

    A LangGraph ToolNode that executes tool calls emitted by give_advice. Currently integrates research_educational_strategies for RAG-backed document search. The node generates multiple diverse RAG queries, performs parallelised vector searches, and filters results by an LLM-based relevance score before returning them to give_advice.

  • ongoing_support

    After the initial advice is given, this node handles the continuing conversation. It provides follow-up support, answers additional questions, and maintains context from the conversation summary stored in the state.

  • summarize_conversation

    Triggered at the end of a conversational loop. It generates a concise summary of the interaction. The summary is persisted asynchronously via the MemoryLake (see below), allowing context to be retained across sessions.

  • user_feedback

    A terminal node in the main advice-giving flow. It allows the conversation to end gracefully, awaiting further input from the user. If the user continues the conversation, the flow restarts through the appropriate router.

Routings

Routing is managed by conditional edges that evaluate the agent’s state (Service1State) to determine the next node.

  • should_collect_context

    The main entry-point router. Routes to agent1 if context is already complete or if the session is in ongoing-support mode; otherwise defaults to collect_context.

  • give_advice_after_context_collection

    Fired after collect_context completes. Routes directly to give_advice when all context questions have been answered, bypassing agent1 for speed.

  • router

    The primary action router after agent1. Takes the action field set by agent1 and routes to the corresponding node (give_advice, ongoing_support, user_feedback, or summarize_conversation). Also handles the fast-path to ongoing_support when the session is already in support mode and the last message is from the human.

  • advice_router

    Manages the flow after give_advice. Uses tools_condition to detect pending tool calls and route to research_tools; proceeds to summarize_conversation when summarisation is flagged (should_summarize); otherwise returns the action from state.

Advanced Concepts

NodeEnv — Declarative Prompt System

Nodes no longer hard-code their prompts or tool bindings in Python. Instead, each node declares its requirements in a YAML manifest stored in nodes/manifests/:

# Example: nodes/manifests/give_advice.yaml
node: give_advice
prompts:
  base: give_advice_system_prompt
  snippets:
    - first_advice_extension
tools:
  catalog:
    - tool: research_educational_strategies
      condition: first_advice
response_schema: GiveAdviceAnswer

The NodeEnv class (utils/node_env.py) reads the manifest at runtime and:

  1. Resolves the base system prompt from the i18n layer for the current language and user type.
  2. Appends any declared supplementary snippets (e.g., first_advice_extension).
  3. Filters the tools catalog against optional state conditions (e.g., only bind the research tool for the very first advice turn).
  4. Binds the resolved tool list or response schema to the LLM using bind_tools / with_structured_output.

This design means prompt content can be adjusted in the YAML files or i18n layer without any Python changes. A refresh_manifest_schema.py utility keeps the JSON Schema (node_manifest.schema.json) in sync with the manifest format for IDE validation.

Persistent Memory Lake

Conversation summaries are now persisted asynchronously via the MemoryLake (memory/lake.py), decoupling the agent’s hot path from database I/O:

  1. After summarize_conversation generates a summary, it drops a QueuedSummary into the lake and returns immediately — the agent does not wait for the write.
  2. The lake maintains a two-layer worker pool (3 + 3 async workers). The first layer deduplicates pending writes per (user_id, session_id) key, keeping only the most recent summary. The second layer flushes these to the MemoryService (which writes to PostgreSQL).
  3. On failure the key is re-queued, providing at-least-once delivery semantics without blocking the conversation.

The MemoryLake is initialised once on application startup and accessed as a singleton via get_memory_lake().

Internationalization (i18n)

The agent is multi-lingual from the ground up. The api/i18n/ directory and i18n_manager.py are central to this capability.

  • YAML-Only Content: All user-facing strings — system prompts, UI messages, and context-collection questions — are now stored in YAML files (e.g., context_questions/FR.yaml, prompts/teenager/FR/). The older JSON format has been fully retired.
  • Multi-Tenant Prompt Structure: Prompts are organised by user_type (teenager / parent) and language, allowing each audience to receive appropriately tailored language and framing.
  • Dynamic Database Overrides: The system supports dynamic overrides via the LocalizedContent database table. This allows updating prompts, UI messages, and snippets in production without requiring a code redeployment. Database content always takes precedence over filesystem YAML content.
  • Two-Layer Caching: The i18nManager employs a file-level cache layered on top of a memory-based database override cache, with additional LRU caching on public getter methods to minimise repeated database or file reads.
  • Synchronization Tool: A sync_to_db.py CLI script is provided to synchronize YAML content into the database, facilitating bulk updates and CI/CD integration.
  • State-Driven Language: The language field in Service1State drives all translation lookups, making it straightforward to add new languages without changing the agent’s Python code.
  • XML-Style Tagging: Dynamic content injected into prompts (collected context, previous conversations, privacy guidelines) is wrapped in XML tags (e.g., <collected_context>, <previous_conversations>) so the LLM can reliably distinguish information types.

Dynamic Context Collection

The collect_context node uses a sophisticated mechanism to extract structured information from a user’s initial message.

  • Structured Output: It uses the LLM’s structured output capability (with_structured_output).
  • Dynamic Pydantic Models: The utils/context.py file contains a QAFactory function that dynamically creates a Pydantic BaseModel from the list of context questions for the user’s language. For multiple-choice questions, Literal types constrain the output to valid values.
  • Confident Extraction: Each answer is accompanied by the model’s reasoning and confidence level, so only explicitly stated information is used — reducing hallucinations.
  • AI-Driven Dynamic Questions (feature-flagged): When the enable_dynamic_question_generation feature flag is enabled, the node can ask the LLM to generate additional follow-up questions beyond the static set, collecting richer situational context. This is controlled at runtime without code changes.

Sequential Dynamic Question Generation

When the enable_sequential_dynamic_question_generation feature flag is active (in addition to enable_dynamic_question_generation), the context collection node switches to a sequential adaptation mode:

  1. One question at a time: Rather than extracting all context from the initial message, the node asks questions one-by-one, adapting each subsequent question based on the user’s previous answers.
  2. Comprehensive question adaptation: The LLM evaluates which contextual information has already been gathered and generates only the next most relevant question. This prevents redundant questioning and creates a more natural conversational flow.
  3. Context completion detection: The node tracks which context fields have been filled and stops when all required context is collected (context_complete == true).

This mode is designed for situations requiring deeper, more adaptive context gathering — particularly useful for the teenager variant where building rapport through a natural question flow improves disclosure.

Strategy Selection

The give_advice node includes a strategy selection step that chooses appropriate response strategies from a predefined orientation matrix. This is not a hardcoded decision tree — the LLM selects and ranks strategies based on the user’s specific situation.

Strategy Categories

Strategies are organized into four scopes, ordered by typical priority:

Scope Priority Range Purpose
immediate 1–2 Crisis response: pause, breathe, report, block
support 2–7 Social support: friends, parents, teachers
preventive 3–8 Long-term: digital citizenship, online boundaries
escalation 4–9 Professional help: helplines, human support team

Strategy Catalog (10 strategies)

# Strategy Key Scope Description
1 short_term_advice immediate Pause, breathe, take screenshots — universal first step
2 report_blocking_platforms immediate Report and block on the platform (unknown perpetrators)
3 in_person support Talk directly with the other person (known persons only)
4 support_friends support Talk to trusted friends
5 support_parents support Involve parents or guardians
6 support_teachers support Seek help from teachers/school counselors
7 direct_response_online preventive Craft replies, set boundaries, manage online presence
8 protect_and_respect preventive Long-term digital citizenship and privacy hygiene
9 support_help_lines escalation Professional helplines and support services
10 support_human_level2_mm escalation MonsterMessenger human support team (last resort)

How It Works

  1. Strategy Manifest: All 10 strategies are defined in utils/strategy_manifest.yaml with descriptions, applicable conditions, and typical priority ranges. The manifest is loaded at import time into ALL_STRATEGIES.

  2. LLM Selection: The give_advice prompt includes the full strategy catalog as XML markup. The LLM outputs a StrategySelection containing:

    • strategy_list: 3–7 selected strategies, each with a rank and a ui_option (emoji + label for frontend display)
    • reasoning: Brief justification for the selection

  3. UI Options: Each selected strategy includes a StrategyOption with an emoji, a concise action label (e.g., “Set online boundaries”), and a value identifier for frontend rendering. These appear as interactive choice buttons in the UI.

  4. Frontend Integration: The selected strategies are rendered via the unified InteractivePrompt system with prompt_style = "choice". Users can tap a strategy to explore it, and the selection feeds back into the conversation.

Strategy Definition Format

Each strategy in the manifest has:

- id: support_parents
  typical_priority_range: [2, 6]
  category: support
  description: >
    Involving parents or guardians in the resolution...
  applicable_conditions: >
    Applicable in both online and offline situations...

The applicable_conditions field is natural language that the LLM uses to determine whether a strategy fits the user’s situation. The typical_priority_range guides the LLM’s ranking.

Strategy Memory

The agent now maintains a conversation-scoped strategy memory that tracks which strategies have been suggested, activated, deferred, or dismissed over the course of a session. This enables the agent to avoid repeating dismissed strategies and to adapt its recommendations based on the user’s past choices.

Data Model

The memory is modelled in agents/service1/utils/strategy_memory.py using Pydantic models:

Model Fields Purpose
StrategyKey strategy_id, scope, ranking_range Identifies a specific strategy
StrategyInstance strategy_key, status, chat_session_id, suggested_at, chosen_at, completed_at, annotation, annotation_phase Tracks one strategy’s lifecycle within a session
StrategyMemory history: List[StrategyInstance], MAX_HISTORY = 20 The full in-memory history for one conversation
Annotation author, timestamp, text A free-text note attached to a strategy instance

Enums:

Enum Values Purpose
StrategyStatus SUGGESTED, ACTIVE, DEFERRED, COMPLETED, FAILED, DISMISSED Lifecycle state
AnnotationPhase ONGOING, AFTER_COMPLETION, AT_DISMISSAL When an annotation was added

State Machine

Each StrategyInstance transitions through states in a directed graph:

stateDiagram-v2
    [*] --> SUGGESTED : seed by give_advice
    SUGGESTED --> ACTIVE : set_active
    SUGGESTED --> DISMISSED : dismiss
    ACTIVE --> COMPLETED : complete
    ACTIVE --> FAILED : fail
    ACTIVE --> DEFERRED : defer / set_active(prev)
    DEFERRED --> ACTIVE : set_active
    DEFERRED --> DISMISSED : dismiss
    DISMISSED --> SUGGESTED : re-suggest

Key behaviours:

  • set_active auto-defers any previously ACTIVE strategy to DEFERRED (not COMPLETED)
  • set_active accepts an optional prev parameter to control whether the displaced strategy becomes DEFERRED or FAILED
  • Only one strategy can be ACTIVE at a time
  • MAX_HISTORY = 20 with oldest-first eviction by suggested_at

Integration with Agent State

The Service1State TypedDict in core/state.py carries the memory as:

strategy_memory: Annotated[Optional[StrategyMemory], merge_strategy_memory]

The custom merge_strategy_memory reducer handles parallel tool-call collisions (when the LLM issues multiple strategy_management calls in one turn):

  1. Deduplication: Merges instances by (strategy_key, chat_session_id)
  2. Conflict resolution: When two parallel calls modify the same instance, the higher-priority status wins (ACTIVE > DEFERRED > DISMISSED > SUGGESTED)
  3. Annotation merging: Annotations from both branches are preserved

The conversation_id field in state is used as the storage key.

Tools

Two dedicated tools are registered in tools/strategy_tools.py:

strategy_management — The LLM calls this to modify strategy state:

Action Parameters Effect
set_active strategy_key, prev (DEFERRED or FAILED) Activates a strategy; auto-defers the previous active one
defer strategy_key, reason Pauses a strategy for later
dismiss strategy_key, reason Marks a strategy as rejected
complete strategy_key, annotation (optional) Marks as successfully completed
fail strategy_key, reason, annotation (optional) Marks as attempted but unsuccessful
annotate strategy_key, annotation, annotation_phase Adds a note without changing status

strategy_lookup — Retrieves the full history for one or more StrategyKey values. Returns JSON with status, timestamps, and annotations.

Both tools are available only in the ongoing_support node (not in give_advice). A separate memory_tools ToolNode processes these calls, with a dedicated ongoing_support_router that routes to it and loops back to ongoing_support after execution.

Each tool call is decorated with @sse_emitter_decorator (see SSE Tool-Call Events below), which emits a real-time tool_call SSE event when the emit_tool_calls_via_sse feature flag is enabled.

Seeding (give_advice)

During the first advice turn, give_advice seeds the memory with SUGGESTED strategies:

  1. The LLM selects 3–7 strategies via strategy_choice_instructions (teenager users only)
  2. For each selected strategy, the node calls memory.get_instance(strategy_key, chat_session_id) to avoid duplicates
  3. If no existing instance is found, memory.add_instance() adds a SUGGESTED entry
  4. The updated memory is directly persisted via MemoryService.write_strategy_memory() — a synchronous write, unlike the two-layer worker pattern used for conversation summaries

The seeding logic is in nodes/advice.py.

Persistence

Strategy memory is stored in the LangGraph PostgresStore under namespace ("strategy_memory", user_id) with key conversation_id. The MemoryService provides:

  • write_strategy_memory(c_id, u_id, memory) — full replacement write
  • get_strategy_memory(c_id, u_id) — deserializes stored JSON back into StrategyMemory

On cold start (new user, new conversation), strategy_memory is None in state. The compile_initial_state method in AppDataService loads existing memory from the store during session resumption.

On resume, the loaded memory appears in the agent’s prompt via the formatter, giving the agent full context of previously tried strategies.

Prompt Injection

The format_strategy_memory function in utils/formatters.py converts the StrategyMemory history into an XML-tagged block:

<strategy_memory>
  <instance>
    <key>support_parents</key>
    <status>ACTIVE</status>
    <suggested_at>2026-05-29T10:32:00Z</suggested_at>
    <chosen_at>2026-05-29T10:32:00Z</chosen_at>
  </instance>
  <instance>
    <key>report_blocking_platforms</key>
    <status>DISMISSED</status>
    <suggested_at>2026-05-28T14:22:00Z</suggested_at>
    <annotation>User said they already tried this</annotation>
  </instance>
</strategy_memory>

The block is injected into ongoing_support.yaml and give_advice.yaml manifests via the strategy_memory_context snippet, controlled by a condition that checks for non-empty history. When the memory is None or empty, the formatter returns an empty string — the LLM sees no strategy history.

A companion format_user_profile formatter is also available, injecting a condensed user_profile block with user type and language.

SSE Tool-Call Events

Every tool call made by the agent is broadcast to the frontend as a real-time Server-Sent Event:

  1. The sse_emitter_decorator in tools/__init__.py wraps each tool function
  2. Before executing the tool, it checks emit_tool_calls_via_sse (feature flag, backend-only) and client_config.supports_sse from the client
  3. If both are true, it emits a tool_call SSE event via the centralized get_sse_manager() singleton in core/dependencies.py
  4. The event payload contains tool_name (e.g. strategy_management), tool_call_id, and params (excluding the runtime object)

The SSEManager singleton lives in services/sse_manager.py and is accessed exclusively through core.dependencies.get_sse_manager() — no other file imports sse_manager directly. This ensures the same instance serves both the SSE decorator and the /events/listen endpoint.

Frontend Integration:

  • The useSSE hook (frontend/src/hooks/useSSE.tsx) listens for tool_call events and updates lastToolCallEvent in context
  • clearLastToolCallEvent() consumes the event after display to prevent re-triggering on re-renders
  • The ToolCallIndicator component (frontend/src/components/ToolCallIndicator.tsx) renders a small icon overlay on the monster avatar:
    • BookOpen for research_* tools
    • MapPin for strategy_* tools
    • Wrench for all others
  • The indicator is feature-flagged behind react_sse_tool_calls (frontend flag)
  • A CSS animation (@keyframes toolCallFade) provides a scale-pop-in + fade-out over 2 seconds
  • Key-driven re-mounting forces the animation to retrigger on each new event
  • Mounted as a singleton inside Message.tsx, gated by isLast (only the latest bot message shows the indicator)

Feature Flags

Two flags control the SSE tool-call pipeline, both seeded in _seed_default_flags():

Flag Visibility Default Controls
emit_tool_calls_via_sse BACKEND true Whether the decorator emits events at all
react_sse_tool_calls FRONTEND true Whether the frontend renders the indicator

Disabling the backend flag cuts the entire pipeline at the source. Disabling only the frontend flag hides the visual indicator while events continue to flow.

Observability with Langfuse

The agent is integrated with Langfuse for tracing and monitoring, configured in api/agents/service1/utils/observability.py.

  • Callback Handler: A custom AsyncCallbackHandler, ErrorFlagger, is attached to the LLM client.
  • Error Flagging: The on_llm_end method inspects the LLM response metadata. If it finds a block_reason (response blocked by safety filters), it updates the corresponding trace in Langfuse.
  • Debugging: This provides immediate visibility into when and why the LLM refuses to respond, which is important given the sensitive domain.

Monster Interaction System

The chatbot uses monster characters as a gamification and rapport-building layer. During conversations, the agent can switch between different monsters — each with a distinct personality, emoji, and visual avatar.

Monster Catalog

The MonsterStateChangeHandler maintains a map of 11 monsters:

Key Display Name Key Display Name
moustache Moustache nosy Nosy
cyclops Cyclops brocoli Mme. Brocoli
rocky Rocky dinny Dinny
mandarina Mandarina harry Harry
bart Bart charlie Charlie
freddysecurity Freddy Security

The default monster is betty.

State Change Detection

The MonsterStateChangeHandler (api/services/monster_callbackhandler.py) is a LangChain AsyncCallbackHandler attached to the agent graph. It tracks monster state per conversation thread:

on_chain_start
    │
    ├── Captures thread_id from metadata
    ├── Caches initial monster from inputs["monster"]
    └── Stores run_id → thread_id mapping

    ... agent runs, potentially changing monster ...

on_chain_end
    │
    ├── Retrieves thread_id from run_id mapping
    ├── Compares state["monster"] against cached value
    ├── If changed:
    │   ├── Persists new monster to DB (chat_sessions.current_monster)
    │   ├── Emits SSE "settings" event with monster change announcement
    │   │   (i18n key: "monster_change_announcement")
    │   ├── Emits SSE "settings" event with new monster name
    │   └── Updates thread cache
    └── Cleans up run_id mapping

on_chain_error
    └── Cleans up run_id mapping (preserves monster state)

How Monster Changes Occur

The monster field in the LangGraph state is set by agent nodes. The agent decides which monster is appropriate based on the conversation context — for example, switching to a more empathetic monster when the user expresses distress, or to a more playful one during lighter moments.

SSE Emission

For clients that support SSE (supports_sse == true), the callback emits two events on monster change:

  1. Announcement: event: "settings" with {"monster": "<previous>", "message": "<i18n announcement>"} — a localized message like “Rocky will help you” that the frontend can display
  2. Switch: event: "settings" with {"monster": "<new>"} — triggers the frontend to update the monster avatar

A small delay (await asyncio.sleep(0.1)) between emits ensures Cloud Run/GCLB flushes the buffer.

Frontend Integration

The frontend listens for settings SSE events and: - Updates the MonsterAvatar component (with optional 3D flip animation controlled by enable_monster_flip_animation) - Displays the announcement message in the chat - Persists the current monster in app state

Persistence

Monster changes are persisted to the chat_sessions.current_monster field in the database, ensuring the monster state survives server restarts and session resumption.

Service and LLM Client Configuration

The api/agents/service1/core/llm_client.py file centralises LLM and service initialisation.

  • Lazy Loading: get_llm(), get_rag_service(), and get_analytics_service() are lazy-loaded — initialised on first call rather than at startup.
  • LLM Safety Settings: The ChatGoogleGenerativeAI client deliberately disables all default safety filters (HarmBlockThreshold.BLOCK_NONE) to handle sensitive topics. Content safety is managed through prompt design and the ErrorFlagger observability layer.
  • User-Type-Aware RAG Service: get_rag_service initialises a RAGService aware of the user_type (teenager / parent), routing it to the correct vector-database collection.
